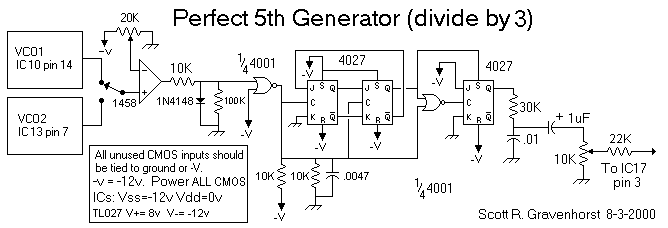

                 This is a subharmonic generator similar to my first one, except that this one makes a perfect fifth instead of an octave. It is made up of a digital divide by 3 circuit with symmetrical square wave output. This circuit produces a square wave tone that is one perfect fifth above a tone 2 octaves below the VCO pitch. Example, play a C2 and this circuit produces F1. This F1 is a tiny bit sharper than an equally tempered fifth. The tone produce is not equally tempered, and therefore will beat slowly with an equally tempered fifth. This will "fatten" the sound.
Note: THIS IS UNDER DEVELOPMENT & CAN CHANGE.
